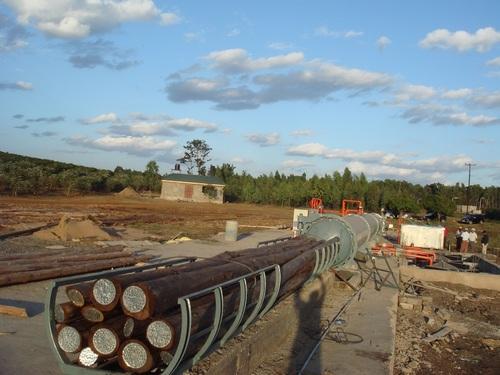

Telephone Pole Treatment Plant

1
2
3
4
5

Our fully automatic computer controlled Telephone Pole Treatment Plant makes the entire process quite easy and simple. The plant is well incorporated with some of the salient features like fully automatic mixing and dosing unit and hydraulically operated rapid closing door. We can also customize the plant with a variety of options to meet client's exact needs. The poles produced from the plant are very much capable of sustaining the load of telecommunication cables.

Features:

  • Installed with a fully automatic dosing and mixing system
  • Easy and quick filling phase
  • Steam fixation process under vacuum
  • Water cooled vacuum pump
  • All aggregates installed on solid frame
  • Optimal reuse of the solvents




  • Capacity/Power:

  • 120CFT/8.5hp, 150CFT/8.5hp, 200CFT/8.5hp, 280CFT/10.5hp, 325CFT/10.5hp



  • Specifications:

  • Power: 15hp
  • Application: Pole impregnation
  • Automatic Grade: Semi-Automatic
  • Machine Capacity: 20 poles/batch

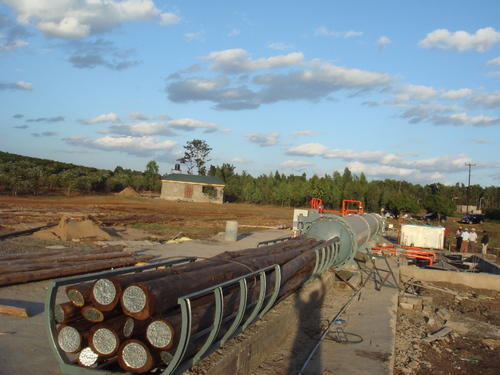

Telephone Pole Impregnation Plant

This Telephone Pole Impregnation Plant is a high-tech solution developed for a consistent performance throughout its service life. In this plant, the preservatives are penetrated onto the poles, thus, giving a certain protection against heart and dry rot without changing their dimensions. Specially engineered to operate with quick filling system, it assures better control on the absorption of wood preservatives.

Features:

  • Optimal reuse of solvents
  • Installed with water- cooled vacuum pumps
  • Avoid surplus uptake during filling
  • Fast filling
  • Temperature and pressure resistant storage tank







  • Capacity/Power:

  • 120CFT/8.5hp, 150CFT/8.5hp, 200CFT/8.5hp, 280CFT/10.5hp, 325CFT/10.5hp



  • Specifications:

  • Power: 15kw
  • Application: Timber telephone poles
  • Automatic Grade: Semi-Automatic
  • Machine Capacity: 20 Pole

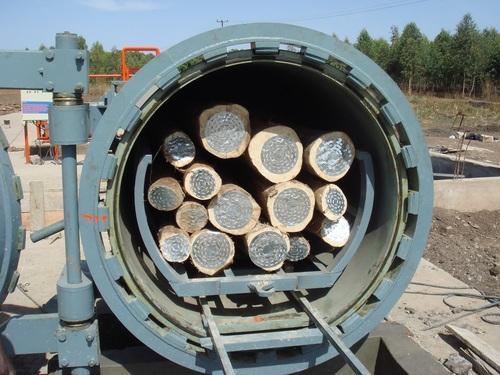

Vacuum Pressure Pole Impregnation Plant

This Vacuum Pressure Pole Impregnation Plant is widely used for making pole completely fire retardant and more durable in quality. Incorporated with highly advanced technology, its simple yet effective mechanism allows protective ingredients to better penetrate into the wood fibres of the pole, ensuring complete protection against fungus and other pathogens.

Features:

  • Compact structure occupies less floor space
  • Water cooled special vacuum pumps
  • Fully automatic operation
  • Storage tank that is pressure and temperature resistant
  • Heavy steel construction with leakage protection
  • Designed with a second autoclave door, with hydraulic quick-lock for drive-through operation









  • Capacity/Power:

  • 20Poles/8.5hp, 40Poles/10.5hp, 80Poles/13hp



  • Specifications:

  • Pressure: 1.58Mpa
  • Temperature: 20-120 degree
  • Vacuum degree: -0.098Mpa

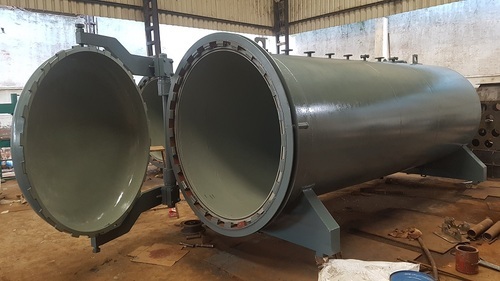

Timber Preservative Plant

We have a variety of options and all the requisite modern facilities for customizing the Timber Preservative Plant in order to meet exact needs of clients. The plant is engineered with a simple mechanism of chemically treating the timber in order to protect it from various damaging elements.

Features:

  • Hydraulic quick-locking door with exhaust of the gases
  • Combustion of all process gases
  • Superb and precise treatment of timber
  • Fully automatic operations
  • Optimal reuse of solvents
  • Operational safety and environment friendliness
  • Full automatic computer control










  • Capacity/Power:

  • 120CFT/8.5hp, 150CFT/8.5hp, 200CFT/8.5hp, 280CFT/10.5hp, 325CFT/10.5hp



  • Specifications:

  • Working pressure: 1.58Mpa
  • Vacuum pressure: -0.098Mpa
  • Size: As required

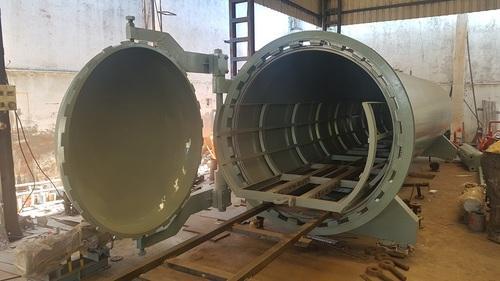

Timber Chemical Preservative Plant

Timber is subjected to special chemical treatments that make it more durable and strong than steel for use in various construction works. The Timber Chemical Preservative Plant impregnates various protective chemicals and preservatives in order to protect it from fungus, insects, termites and pests.

The plant adopts various methods:

  • Empty cell process
  • Pressure process
  • Vacuum and pressure process
  • Reusing process
  • Bethel process





Capacity/Power:

  • 120CFT/8.5hp, 150CFT/8.5hp, 200CFT/8.5hp, 280CFT/10.5hp, 325CFT/10.5hp

Features:

  • Pumps, motors, pipelines, valves & components are of well-known standard brands
  • Main parts of valves and pumps are made of stainless steel
  • Provided with quick wedge lock system door for easy opening and closing
  • Less cycle time
  • Simple operation


Specifications:

  • Temperature: 20-180 degree
  • Vacuum Degree: -0.098Mpa
